Designed and produced in MILOS’ state-of-the-art factories, the MILOS Hanging Plate QTB combines cutting-edge technology with all the safety features associated with the MILOS product range.

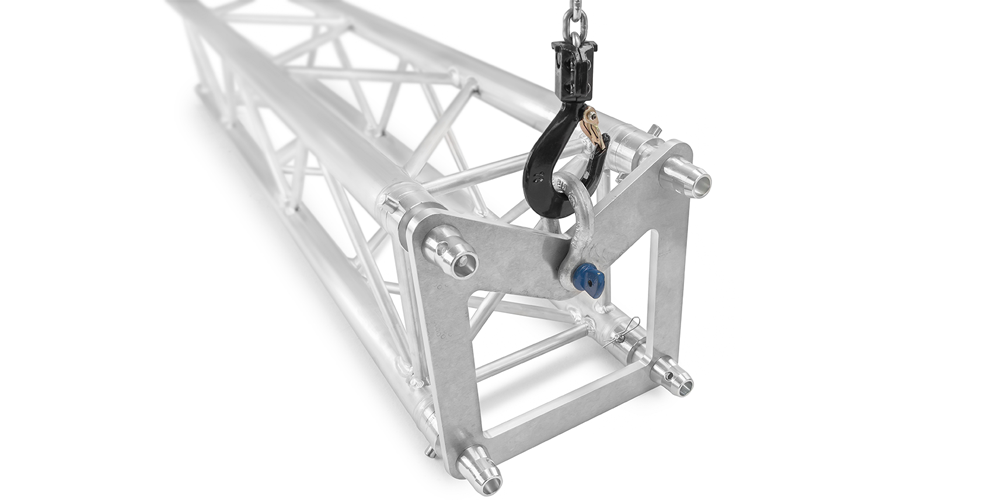

Developed in compliance with the needs of riggers and other industry professionals, the MILOS Hanging Plate QTB allows for the fast and secure horizontal hanging of the MILOS 290 and 390 series quattro truss at optimum heights.
The unique “Drop Hook” design has been specifically created to offer maximum headroom with no loss of clearance allowing your truss to be lifted as high as required. Safety, flexibility, and convenience guaranteed.
CE certified in accordance with directive 2006/42/EC, the aluminium alloy MILOS Hanging Plate QTB can handle loads up to 1000 kg and is fully compliant with DGUV 17 for using loads above people (a double safety factor.) It is fully compatible with the Milos 290 and 390 truss series.
Weighing a lean 3.5 kg, the Hanging Plate has a vertical specification of 292mm coupled with a horizontal measurement of 289mm.
MILOS. A 25+ years young brand, with fast, flexible, and affordable quality solutions.
“MILOS. Works Better”
